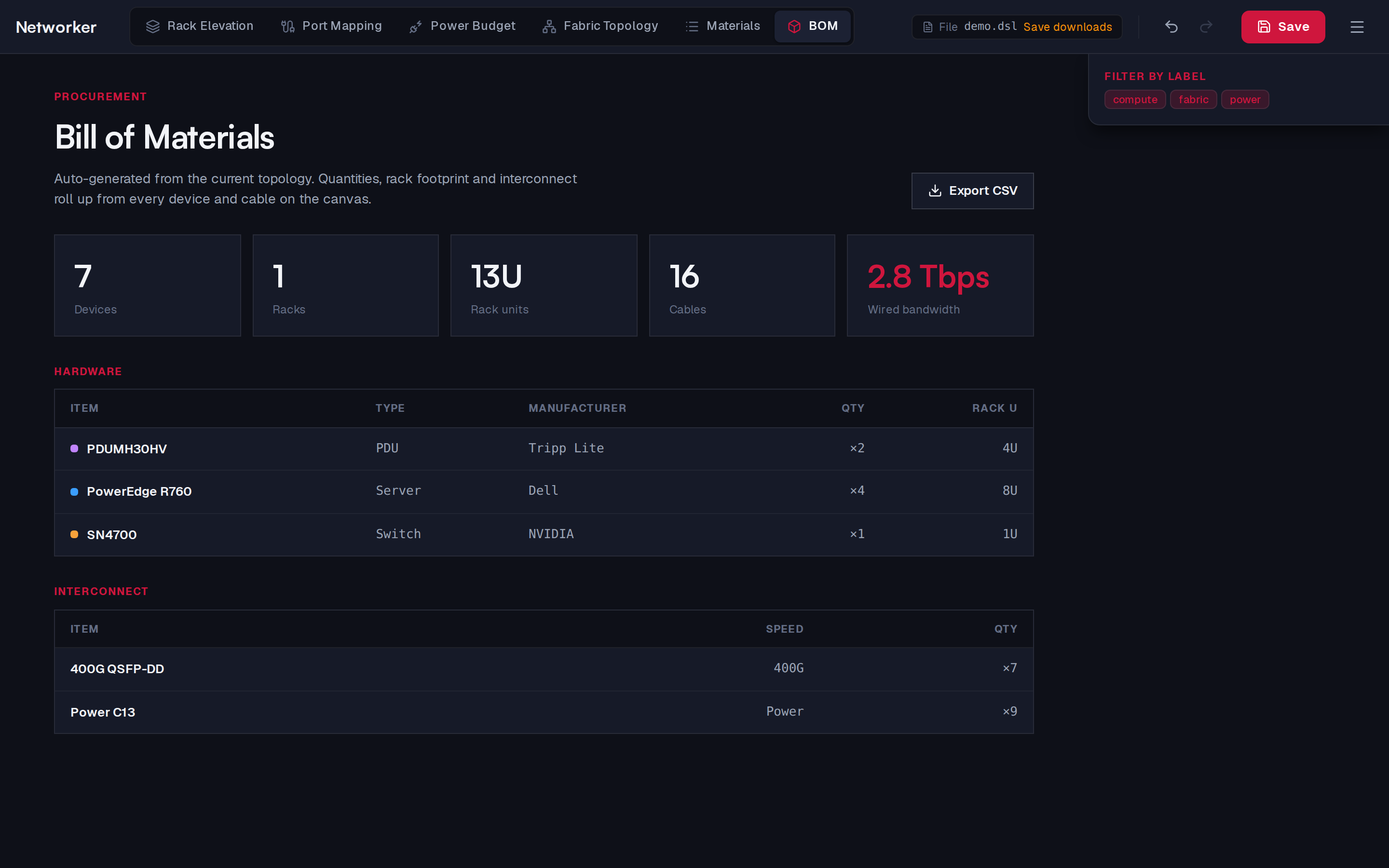

BOM

The bill of materials, generated from the topology. It is read-only and always up to date.

What it shows

• Summary cards — Devices, Racks, Rack units, Cables, and Wired bandwidth (Tbps).
• Hardware — one row per device model: Item, Type (Server, Switch, PDU), Manufacturer, Qty and the total Rack U. Model and manufacturer come from the device's template; a device without one is listed by its label.
• Interconnect — cables grouped by speed and connector (400G QSFP-DD), and power cords by connector (Power C13), with quantities.

Exporting

Export CSV downloads bill-of-materials.csv, with the columns Section, Item, Type, Manufacturer, Qty, Rack Units.

Counting part of the design

The label filter on the right narrows the bill: only devices that pass it are counted, with the cables that reach them, and a note says the bill is filtered. Use it to get a BOM per rack or per role by labelling devices (for example rack-a, gpu).
